INCREASED STRENGTH

Corrugated pan material is available in either 45°, reversed 45°, or 90° on the entire pan bottom and sidewall, within 3/8″ from the top of the sidewall or around the bottom perimeter of the pan.

Extra band reinforcement provides maximum protection of the cover band in heavy use operations (covers only).

MATERIAL OPTIONS
Cover corrugation increases the rigidity of the cover (covers only).

EASE OF USE

Optional 90° corrugations serve as a slicing guide (covers only).

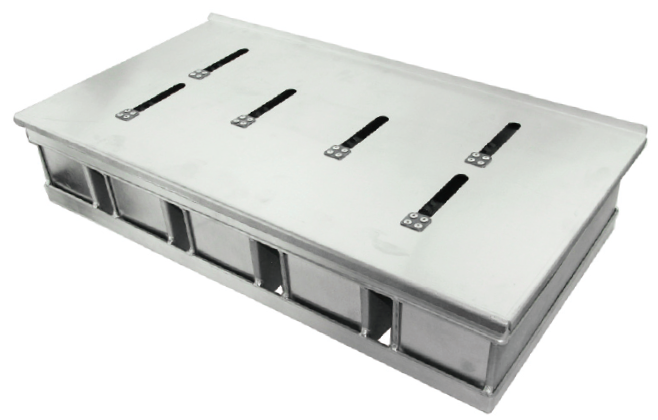

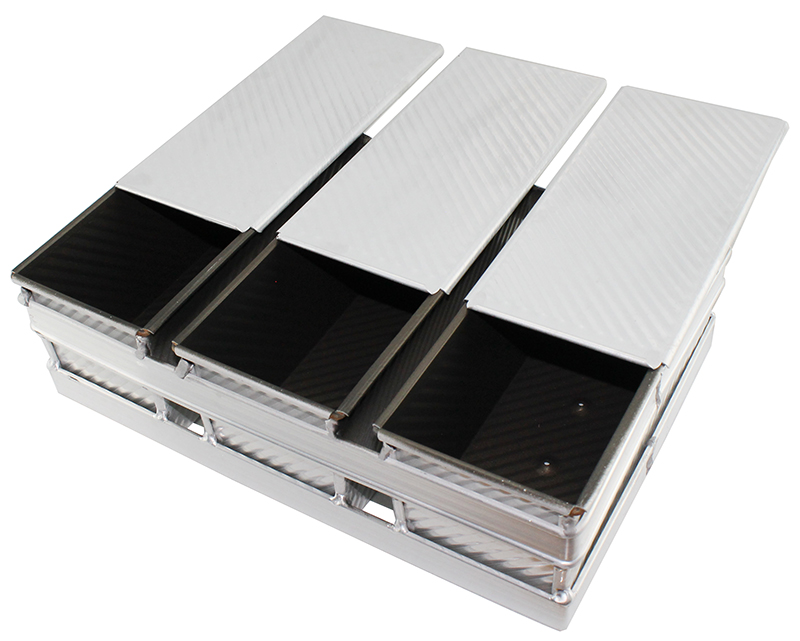

Covers with a contoured outer band hold the top pan set onto the bottom and act as handles when de-lidding the top pan set (covers only).

Covers with a continuous contoured outer band wrapped around on all four sides of the top pan set are designed to drop and hold onto the bottom pan set (covers only).

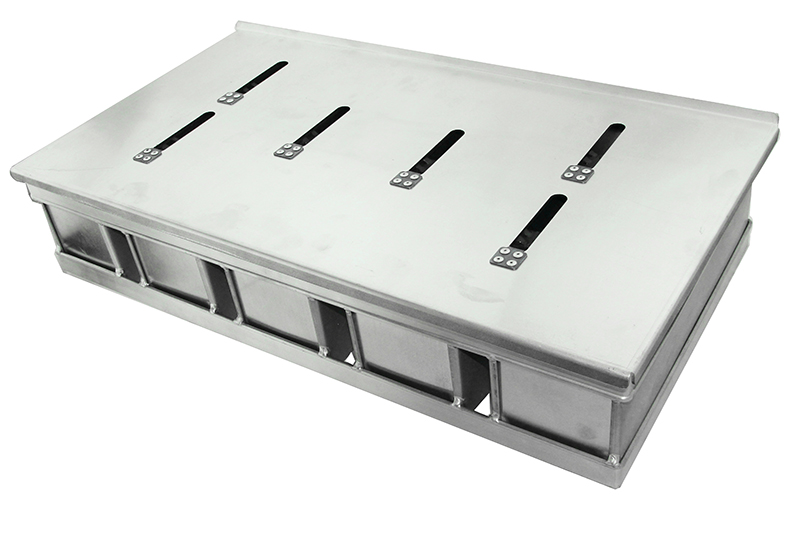

Locator and panner bars help locate the top pan set onto the bottom pan set during automated lidding and engage bottom indexer during the moulder/panner operation (covers only).

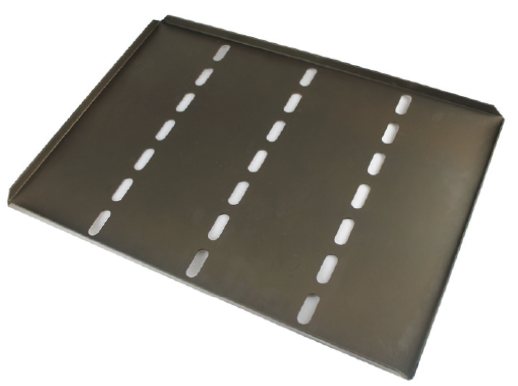

Platform Style Round Bread is designed for use with automated pan handling and stacking. This one-piece platform is ideal for protecting the round pan bottoms. The heavy-duty platform has generous openings and panner slots to allow for heat flow and smooth panning and conveying (covers only).

BETTER BAKING

Convex pyramid area over loaf helps eliminate concave loaf tops. This feature includes one row of holes through the apex of the convex cover (covers only).

Convex dome area over loaf produces a full top on loaf to obtain a flat top after cooling and shrinkage (covers only).

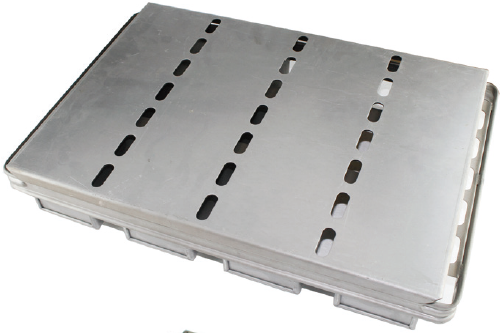

Perforations over loaf area permit gas and heat to escape to ensure uniform top crusts (covers only).

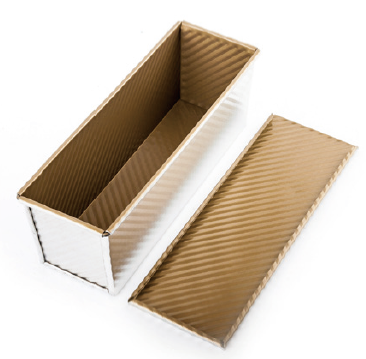

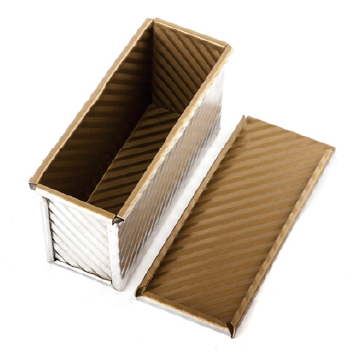

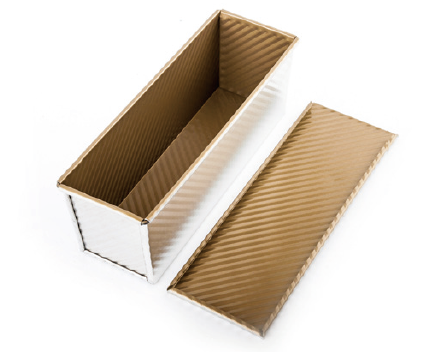

Toast Box Bread Pan

MODEL	SIZE(mm)	MATERIAL
ZJC40010	180X60X60	1.0 mm

MODEL	SIZE(mm)	MATERIAL
ZJC40011	177X60X92	1.0 mm

MODEL	SIZE(mm)	MATERIAL
ZJC40012	118X60X92	1.0 mm

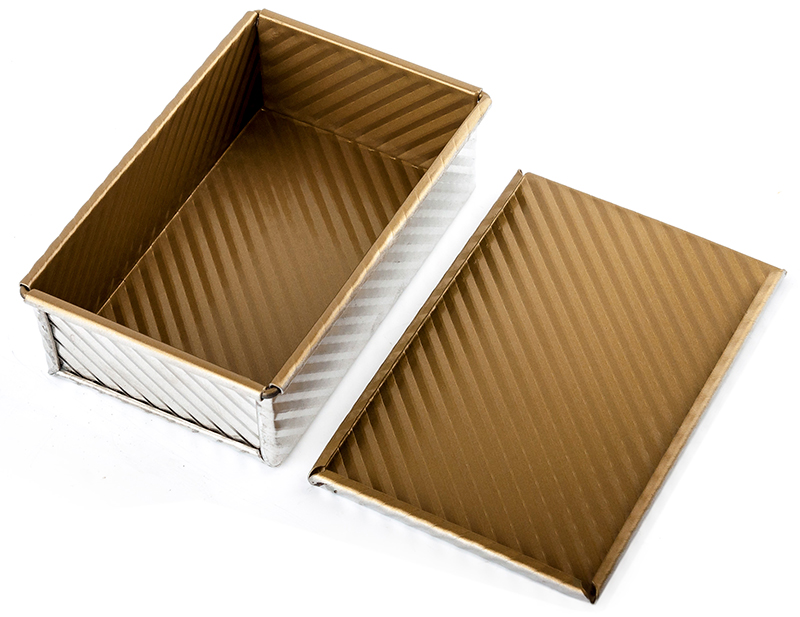

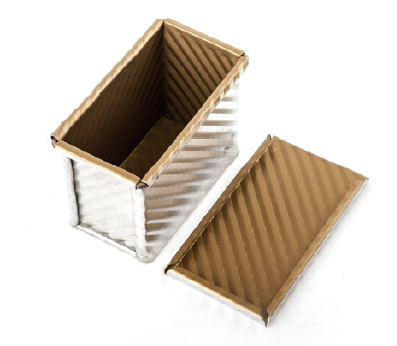

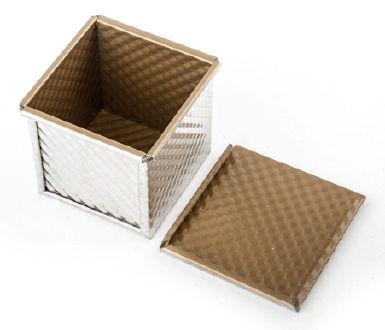

Toast Box Bread Pan

MODEL	SIZE(mm)	MATERIAL
ZJC40013	254X84X55	1.0 mm

MODEL	SIZE(mm)	MATERIAL
ZJC40014	100X100X50	1.0 mm

MODEL	SIZE(mm)	MATERIAL
ZJC40015	187X117X60	1.0 mm

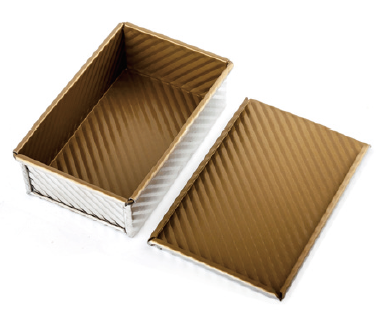

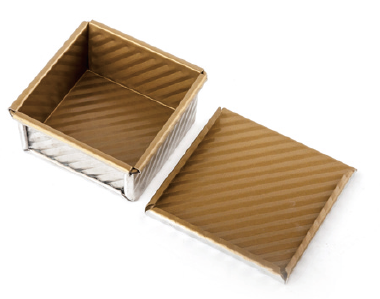

Toast Box Bread Pan

MODEL	SIZE(mm)	MATERIAL
ZJC40016	170X60X90	1.0 mm

MODEL	SIZE(mm)	MATERIAL
ZJC40017	100X100X100	1.0 mm

MODEL	SIZE(mm)	MATERIAL
ZJC40018	151X67X67	1.0 mm

MODEL
Top
ZJC70010	450g	197x106 mm
ZJC70011	600g	309x91 mm
ZJC70012	750g	316x100 mm
ZJC70013	900g	327x106 mm
ZJC70014	1000g	327x121 mm
ZJC70015	1200g	370x120 mm
ZJC70016	1500g	450x123 mm

SIZE
Bottom	Height
186x101 mm	110 mm	1.0 mm
300x84 mm	107 mm	1.0 mm
305x93 mm	116 mm	1.0 mm
316x100 mm	122 mm	1.0 mm
312x119 mm	120 mm	1.0 mm
361x116 mm	125 mm	1.0 mm
447x120 mm	130 mm	1.0 mm

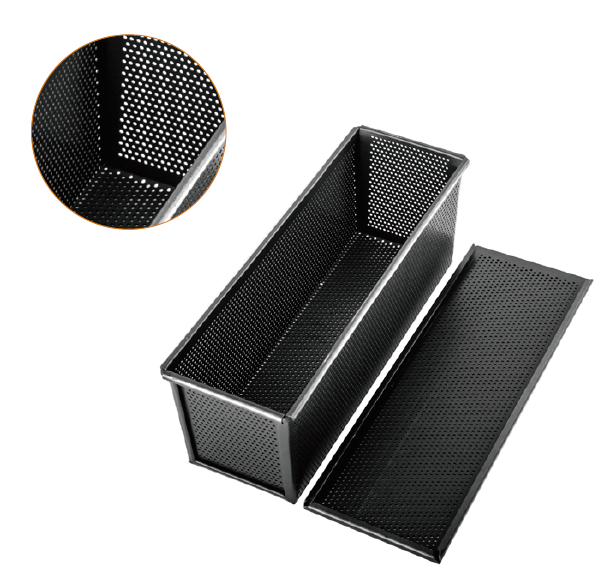

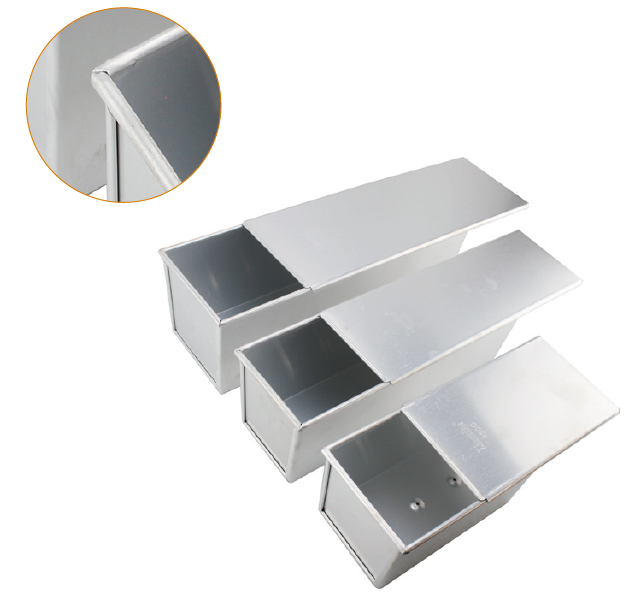

Punching Toast Box Bread Pan

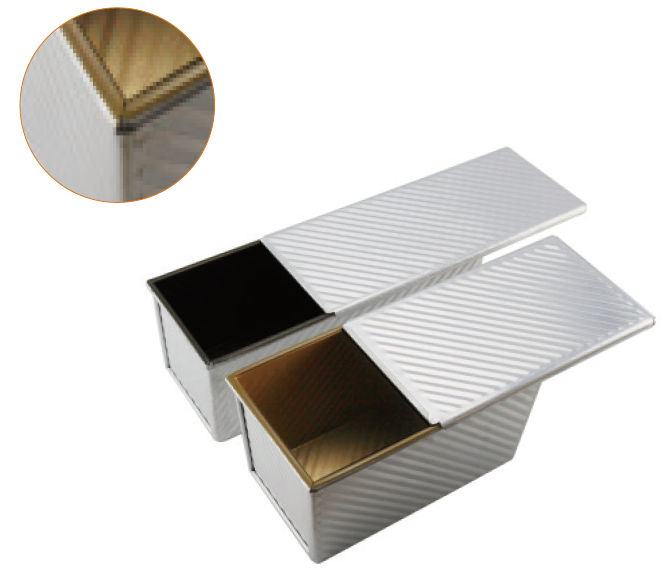

Courrgated Toast Box Bread Pan

MODEL SIZE
Top
ZJC40019	250g	164x94 mm
ZJC40026	300g	175x100 mm
ZJC40020	385g	217x94 mm
ZJC40021	450g	197x106 mm
ZJC40022	600g	309x91 mm
ZJC40023	750g	316x100 mm
ZJC40024	900g	327x106 mm
ZJC40025	1000g	327x121 mm
ZJC40027	1500g	450x123 mm

SIZE
Bottom	Height
158x87 mm	77 mm	1.0 mm
173x98 mm	100 mm	1.0 mm
211x88 mm	77 mm	1.0 mm
186x101 mm	110 mm	1.0 mm
300x84 mm	107 mm	1.0 mm
305x93 mm	116 mm	1.0 mm
316x100 mm	122 mm	1.0 mm
312x119 mm	120 mm	1.0 mm
447x120 mm	130 mm	1.0 mm

MODEL
Top
ZJC20010	250g	164x94 mm
ZJC20018	300g	175x100 mm
ZJC20011	385g	217x94 mm
ZJC20012	450g	197x106 mm
ZJC20013	600g	309x91 mm
ZJC20014	750g	316x100 mm
ZJC20015	900g	327x106 mm
ZJC20016	1000g	327x121 mm
ZJC20017	1200g	370x120 mm
ZJC20019	1500g	450x123 mm

SIZE
Bottom	Height
158x87 mm	77 mm	1.0 mm
173x98 mm	100 mm	1.0 mm
211x88 mm	77 mm	1.0 mm
186x101 mm	110 mm	1.0 mm
300x84 mm	107 mm	1.0 mm
305x93 mm	116 mm	1.0 mm
316x100 mm	122 mm	1.0 mm
312x119 mm	120 mm	1.0 mm
361x116 mm	125 mm	1.0 mm
447x120 mm	130 mm	1.0 mm

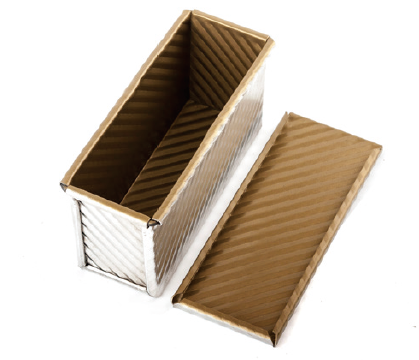

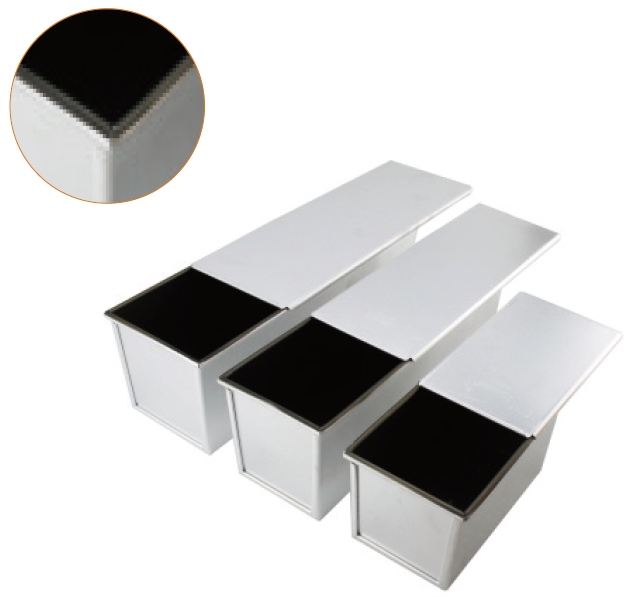

Toast Box Bread Pan

Courrgated Toast Box Bread Pan

MODEL
Top
ZJC30010	250g	164x94 mm
ZJC30018	300g	175x100 mm
ZJC30011	385g	217x94 mm
ZJC30012	450g	197x106 mm
ZJC30013	600g	309x91 mm
ZJC30014	750g	316x100 mm
ZJC30015	900g	327x106 mm
ZJC30016	1000g	327x121 mm
ZJC30017	1200g	370x120 mm
ZJC30019	1500g	450x123 mm

SIZE		MATERIAL
Bottom Height
158x87 mm	77 mm	1.0 mm
173x98 mm	100 mm	1.0 mm
211x88 mm	77 mm	1.0 mm
186x101 mm	110 mm	1.0 mm
300x84 mm	107 mm	1.0 mm
305x93 mm	116 mm	1.0 mm
316x100 mm	122 mm	1.0 mm
312x119 mm	120 mm	1.0 mm
361x116 mm	125 mm	1.0 mm
447x120 mm	130 mm	1.0 mm

MODEL
Top
ZJC10010	250g	164x94 mm
ZJC10018	300g	175x100 mm
ZJC10011	385g	217x94 mm
ZJC10012	450g	197x106 mm
ZJC10013	600g	309x91 mm
ZJC10015	750g	316x100 mm
ZJC10015	900g	327x106 mm
ZJC10016	1000g	327x121 mm
ZJC10017	1200g	370x120 mm
ZJC10019	1500g	450x123 mm

SIZE		MATERIAL
Bottom Height
158x87 mm	77 mm	1.0 mm
173x98 mm	100 mm	1.0 mm
211x88 mm	77 mm	1.0 mm
186x101 mm	110 mm	1.0 mm
300x84 mm	107 mm	1.0 mm
305x93 mm	116 mm	1.0 mm
316x100 mm	122 mm	1.0 mm
312x119 mm	120 mm	1.0 mm
361x116 mm	125 mm	1.0 mm
447x120 mm	130 mm	1.0 mm

Toast Box Bread Pan
